Choosing the right boiler for your property requires careful consideration of heating output, efficiency ratings, and long-term reliability. The Worcester 4000 25kW represents a significant option within the Greenstar range, designed specifically for medium-sized homes with moderate heating and hot water demands. Understanding the technical specifications, installation requirements, and operational benefits of this unit enables homeowners across the North East to make informed decisions about their heating infrastructure investments in 2026.
Technical Specifications and Performance Characteristics
The Worcester 4000 25kW delivers a balanced heating output suitable for properties with two to three bathrooms and up to 15 radiators. This Greenstar 4000 25kW boiler achieves an ErP A-rating for both heating and hot water production, ensuring compliance with current energy efficiency standards whilst minimising running costs.
Key Technical Features
The boiler operates with exceptional efficiency credentials that distinguish it from earlier generation models:
- Maximum efficiency rating: 94% gross (93% net) across the full modulation range
- Modulation ratio: 1:5, allowing the unit to adjust output between 5kW and 25kW
- NOx emissions: Class 6 certification, representing the cleanest combustion classification
- Hot water flow rate: 10.2 litres per minute at 35°C temperature rise
- Compact dimensions: 700mm height, 400mm width, 340mm depth
These specifications position the worcester 4000 25kw as an environmentally conscious choice whilst maintaining practical heating capacity. The modulation capability proves particularly valuable during transitional seasons when full heating output remains unnecessary.
Comparison with Alternative Output Ratings
Understanding how the 25kW model compares to other outputs within the Greenstar 4000 range helps property owners select appropriate capacity:
| Output Rating | Suitable Property Size | Typical Radiator Count | Bathrooms Served |
|---|---|---|---|
| 18kW | 2-3 bedrooms | 8-10 radiators | 1-2 bathrooms |
| 25kW | 3-4 bedrooms | 10-15 radiators | 2-3 bathrooms |
| 30kW | 4-5 bedrooms | 15-20 radiators | 3-4 bathrooms |
| 35kW | 5+ bedrooms | 20+ radiators | 4+ bathrooms |
The 25kW variant occupies a versatile middle ground, preventing undersizing whilst avoiding unnecessary oversizing that reduces efficiency through short cycling. Many North East properties built between 1970 and 2010 fall comfortably within this heating requirement bracket.
Installation Considerations and Requirements
Professional installation remains mandatory for gas-fired appliances, with specific spatial and ventilation requirements detailed in the official installation manual. The worcester 4000 25kw requires careful positioning to optimise performance and facilitate future maintenance access.
Pre-Installation Assessment
Before committing to installation, qualified heating engineers assess several critical factors:
- Existing heating system compatibility – Evaluating whether current pipework, radiators, and controls integrate effectively
- Flue routing options – Determining optimal horizontal or vertical flue pathways whilst maintaining minimum clearances
- Water quality analysis – Testing system water to prevent premature heat exchanger failure through scale or debris accumulation
- Gas supply adequacy – Verifying incoming gas pressure and pipe diameter support the boiler's 22mm connection requirement
- Electrical connections – Ensuring proper fused spur provision and compatibility with existing controls
These preparatory steps prevent costly modifications during installation and ensure the unit operates within manufacturer specifications from initial commissioning. Our central heating system upgrade service encompasses comprehensive assessment protocols.
Space and Clearance Requirements
The compact footprint allows installation in various locations throughout the property:
- Kitchen cupboards: Minimum 100mm clearance on sides, 50mm at rear
- Utility rooms: Wall-mounted or floor-standing configurations with accessible service panels
- Garage installations: Frost protection measures and adequate ventilation provisions
- Loft spaces: Condensate drainage considerations and safe access for annual servicing
Flue terminal positioning must maintain specified distances from windows, doors, air bricks, and adjacent properties. Horizontal flues require 300mm minimum clearance from openable windows, whilst vertical terminations need 600mm above roof penetration points.
Operational Efficiency and Running Costs
The worcester 4000 25kw achieves substantial efficiency improvements compared to boilers manufactured before 2005, translating directly into reduced annual heating expenditure. Modern condensing technology captures latent heat from combustion gases, increasing usable heat output whilst reducing waste emissions.
Energy Consumption Analysis
Based on typical North East climate conditions and average property insulation standards, the 25kW model delivers measurable cost benefits:
| Property Type | Annual Gas Consumption | Estimated Annual Cost (2026) | Savings vs Non-Condensing |
|---|---|---|---|
| Well-insulated semi | 11,500 kWh | £690 | £280 |
| Average-insulated semi | 14,200 kWh | £852 | £345 |
| Poorly-insulated detached | 18,700 kWh | £1,122 | £455 |
These figures assume gas pricing at approximately £0.06 per kWh and include both heating and hot water production across an eight-month heating season. Properties with enhanced insulation standards achieve the most significant operational savings.
Smart Control Integration
Modern heating controls maximise the worcester 4000 25kw efficiency potential through intelligent modulation and scheduling:
- Weather compensation: Adjusts flow temperature based on external conditions
- OpenTherm compatibility: Enables two-way communication between boiler and thermostat
- Load compensation: Detects actual heat demand and modulates output accordingly
- Time and temperature zoning: Creates independent heating schedules for different property areas
Implementing appropriate controls can reduce annual gas consumption by an additional 8-12% compared to basic on/off thermostats. The investment typically recovers within three heating seasons through accumulated energy savings.
Maintenance Requirements and Longevity
Regular servicing preserves efficiency ratings, prevents premature component failure, and maintains warranty validity. The worcester 4000 25kw benefits from accessible service points and diagnostic capabilities that streamline maintenance procedures for qualified technicians.
Annual Service Procedures
Comprehensive servicing encompasses multiple inspection and cleaning operations:
- Combustion analysis with calibrated flue gas analyser
- Heat exchanger inspection for scale deposits or corrosion
- Burner assembly cleaning and electrode gap verification
- Safety device testing including overheat thermostats and flame supervision
- System pressure verification and expansion vessel pre-charge assessment
- Condensate trap cleaning and discharge pipe integrity confirmation
- Control parameter verification through on-board diagnostics
Professional maintenance sessions typically require 60-90 minutes and should occur annually, preferably before the heating season commences. Documented service history strengthens warranty claims and provides reassurance during property sales.
Common Maintenance Issues
Understanding typical maintenance requirements helps property owners anticipate potential expenses:
| Component | Typical Lifespan | Replacement Cost | Failure Symptoms |
|---|---|---|---|
| Heat exchanger | 12-15 years | £450-£650 | Reduced efficiency, pressure loss |
| Pump | 8-12 years | £180-£250 | Circulation failure, noise |
| Diverter valve | 10-15 years | £220-£300 | No hot water, constant heat |
| Expansion vessel | 6-10 years | £120-£180 | Frequent pressure drops |
The Greenstar 4000 operating manual provides fault code references that assist technicians in rapid diagnosis. Many components feature plug-and-play connections that reduce labour time during replacement procedures.
System Configuration Options
The worcester 4000 25kw is available in multiple configurations to suit different heating system topologies. Understanding these variants ensures appropriate selection for specific property requirements and existing infrastructure.

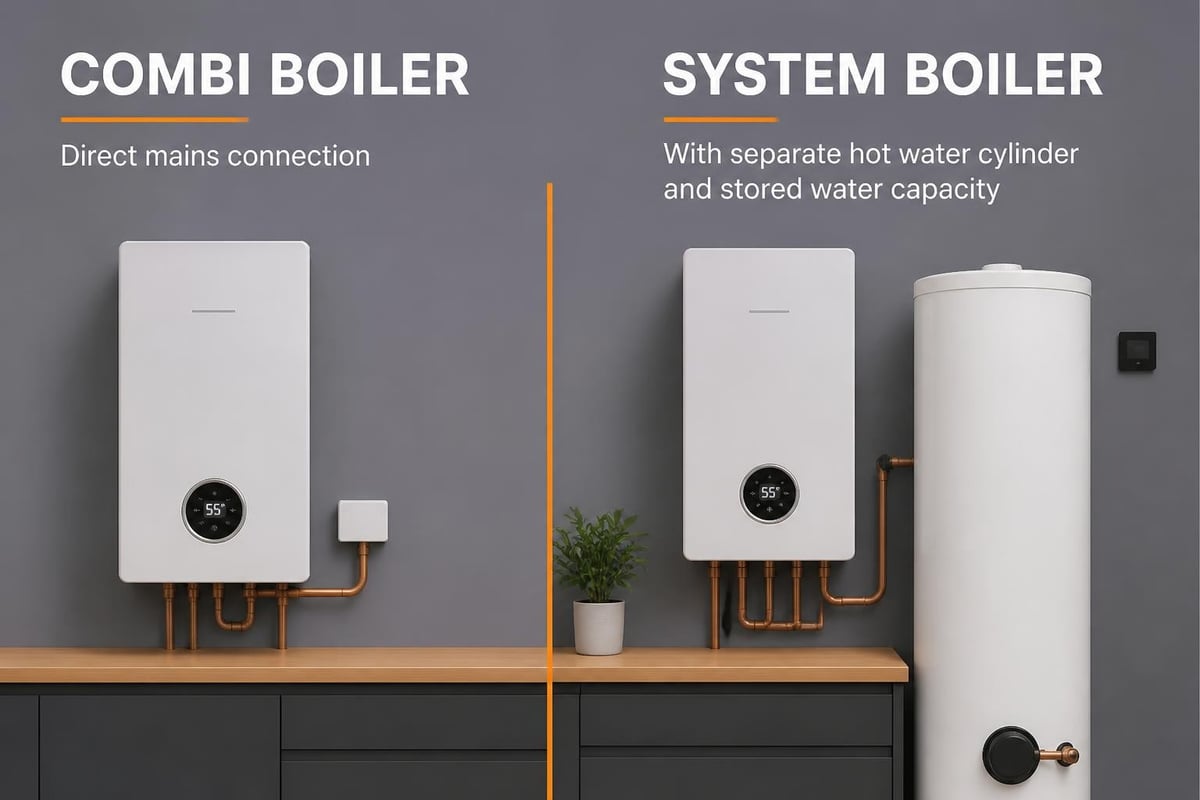

Combi Boiler Configuration
The combination boiler variant provides both central heating and instantaneous hot water without requiring separate storage cylinders. This configuration suits properties with:
- Limited space for additional components
- One or two bathrooms with sequential usage patterns
- Mains water pressure exceeding 1.5 bar
- Simplified installation requirements
The instantaneous hot water delivery eliminates waiting periods and prevents legionella risks associated with stored water, though simultaneous outlet usage reduces individual flow rates.
System Boiler Configuration
System boiler variants incorporate integral expansion vessels and pumps whilst requiring separate hot water cylinders for domestic water storage. This topology benefits properties requiring:
- Multiple simultaneous hot water outlets
- Solar thermal integration capability
- High-volume bath filling
- Consistent flow rates regardless of mains pressure fluctuations
System configurations typically involve higher installation costs but deliver superior hot water performance for larger households with concurrent usage patterns. The comprehensive installation guidance details specific requirements for each configuration.
Environmental Credentials and Future-Proofing
Beyond immediate efficiency ratings, the worcester 4000 25kw demonstrates environmental responsibility through reduced emissions and potential hydrogen compatibility in future energy scenarios. Current legislation increasingly emphasises carbon reduction, making appliance environmental performance a significant consideration.
Emissions Performance
The Class 6 NOx rating represents the cleanest achievable combustion standard under current regulations:
- NOx emissions: Below 40mg/kWh (Class 6 threshold: 56mg/kWh)
- CO emissions: Typically below 100ppm in properly commissioned installations
- Particulate output: Negligible due to clean natural gas combustion
These low emissions contribute to improved local air quality whilst reducing the property's overall environmental impact. Properties in air quality management areas particularly benefit from ultra-low emission heating appliances.
Hydrogen Readiness Considerations
Whilst the current worcester 4000 25kw operates on natural gas, Worcester Bosch actively develops hydrogen-compatible appliances for future energy transitions. The company's roadmap includes:
- Hydrogen-blend compatible units (up to 20% hydrogen mixture)
- Pure hydrogen boiler development programmes
- Retrofit conversion pathways for existing installations
- Training programmes for installation and maintenance technicians
These developments suggest potential upgrade pathways as national gas infrastructure evolves, though pure hydrogen domestic heating remains several years from widespread implementation across the North East region.
Warranty Coverage and Support
Worcester Bosch provides comprehensive warranty protection when installations meet specified criteria and registered installers complete the work. Understanding warranty terms protects long-term investment value and ensures access to manufacturer support throughout the appliance lifespan.
Standard Warranty Provisions
The base warranty framework covers manufacturing defects and component failures:
- Parts and labour coverage: Two years from installation date
- Extended warranty availability: Up to 10 years through accredited installer programmes
- Heat exchanger protection: Extended coverage recognising this critical component's importance
- Registration requirements: Online registration within 30 days of installation
Extended warranty activation requires installation by Worcester Bosch Accredited Installers who demonstrate technical competence through regular assessment and training. Our plumbing installations team maintains accredited status across multiple manufacturers.
Technical Support Resources
Worcester Bosch maintains extensive support infrastructure for both installers and end users:
- Technical helpline: Direct access to manufacturer engineers for fault diagnosis
- Online resources: Comprehensive manual libraries and installation guides
- Training centres: Regional facilities providing hands-on product familiarisation
- Spare parts network: Next-day delivery for common components through distributor partnerships
This support ecosystem ensures rapid resolution of technical issues and minimises heating system downtime during cold weather periods. Manufacturer backing provides confidence beyond initial installation completion.
Installation Costs and Financial Considerations
The worcester 4000 25kw represents a significant capital investment, though various financing options and long-term savings offset initial expenditure. Understanding complete ownership costs enables informed decision-making beyond simple purchase price comparisons.
Typical Installation Investment
Complete installation costs vary based on property-specific factors and configuration choices:
| Installation Type | Equipment Cost | Labour & Materials | Total Investment |
|---|---|---|---|
| Combi replacement (straightforward) | £1,400-£1,650 | £800-£1,200 | £2,200-£2,850 |
| Combi replacement (complex) | £1,400-£1,650 | £1,200-£1,800 | £2,600-£3,450 |
| System boiler (with cylinder) | £1,400-£1,650 | £1,500-£2,200 | £2,900-£3,850 |
Complex installations involve factors such as flue rerouting, gas pipe upgrades, system flushing, or control system enhancements. Obtaining detailed quotations from qualified installers prevents unexpected costs during project execution.
Financing and Incentive Opportunities
Multiple funding pathways reduce upfront financial barriers:
- 0% interest financing: Spread costs across affordable monthly instalments with participating installers
- Energy Company Obligation: Potential grants for qualifying households
- Local authority schemes: Regional programmes supporting heating upgrades
- Home improvement loans: Competitive rates for energy efficiency investments
The combination of reduced running costs and available financing often makes modern condensing boiler installation more accessible than initial price points suggest. Annual savings between £280-£455 compared to non-condensing units provide compelling long-term value.
Troubleshooting and Fault Resolution
Understanding common operational issues and their remedies empowers property owners to distinguish between simple resets and situations requiring professional intervention. The worcester 4000 25kw incorporates diagnostic systems that simplify fault identification.
Frequent User-Resolvable Issues
Several common scenarios respond to straightforward remedial actions:
- Pressure loss: Represents the most frequent issue, typically resolved through filling loop operation to restore 1.0-1.5 bar pressure
- Frozen condensate pipe: Winter weather can freeze external condensate discharge, requiring gentle thawing with warm (not boiling) water
- Temporary lockouts: Flame failure or ignition issues sometimes resolve through simple reset procedures
- Radiator cold spots: Air accumulation requires bleeding through radiator valves
The on-board display presents fault codes that reference specific issues within the detailed troubleshooting guides. Recording displayed codes assists technicians in rapid diagnosis during service calls.
When to Contact Professionals
Certain symptoms demand immediate professional attention rather than DIY intervention:
- Gas odours: Indicating potential leak requiring emergency Gas Safe engineer attendance
- Repeated lockouts: Suggesting underlying combustion or supply issues
- Water leaks: From boiler casing or connecting pipework
- Unusual noises: Persistent banging, whistling, or grinding sounds
- Complete failure: No power, display, or response to controls
Attempting repairs without appropriate qualifications risks safety, invalidates warranties, and may exacerbate existing problems. Gas Safe registered technicians possess diagnostic equipment and manufacturer training essential for complex fault resolution.
The Worcester 4000 25kW delivers reliable, efficient heating for medium-sized North East properties whilst meeting stringent environmental standards and providing long-term value through reduced running costs. Whether you're replacing an aging boiler or upgrading your heating infrastructure, professional installation and ongoing maintenance ensure optimal performance throughout the unit's operational lifespan. For expert boiler installation, comprehensive heating system upgrades, and professional maintenance services backed by over four decades of experience, NU Heat North East Ltd provides trusted solutions across the North East region. Our team of Gas Safe registered engineers delivers quality workmanship with flexible 0% finance options to make your heating upgrade more affordable.
